Sub Soil Drainage System
Basement areas are naturally exposed to sub-soil water, hydrostatic pressure, and moisture buildup. Without proper drainage, these conditions can damage structural elements and reduce the life of the building.
A well-designed Sub Soil Drainage System ensures long-term dryness, durability, and safety of all below-ground structures.
Objectives
A modern sub-soil drainage system is essential to:
Prevent waterlogging and basement flooding
Reduce hydrostatic pressure on basement walls and slab
Prevent dampness, mold growth & structural deterioration
Increase the lifespan of waterproofing systems
Maintain a dry, healthy & usable basement space
Avoid reduced property value caused by moisture problems
Reduce long-term maintenance and rectification costs
Conventional Method: Boulder Drain
Traditionally, boulder drains have been used to control underground water movement. However, they come with several limitations:
Requires large excavation space
Bulky and labor-intensive
High chances of clogging due to mud and silt
Difficult to clean or inspect
Irregular slopes often lead to water stagnation
Dependent on availability of local
Modern Sub Soil Drainage System
Perforated Pipe with Power Drain Belt

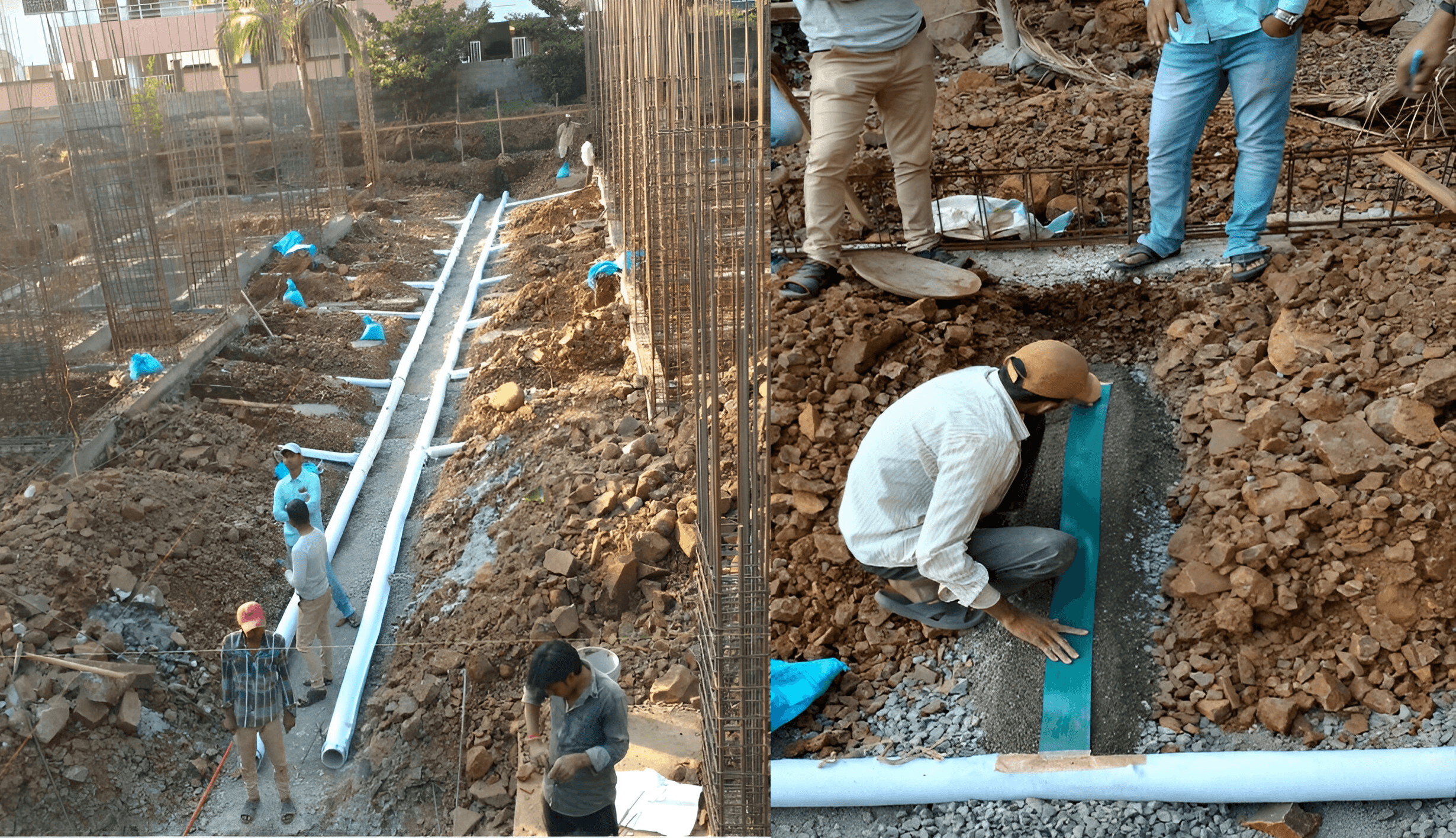

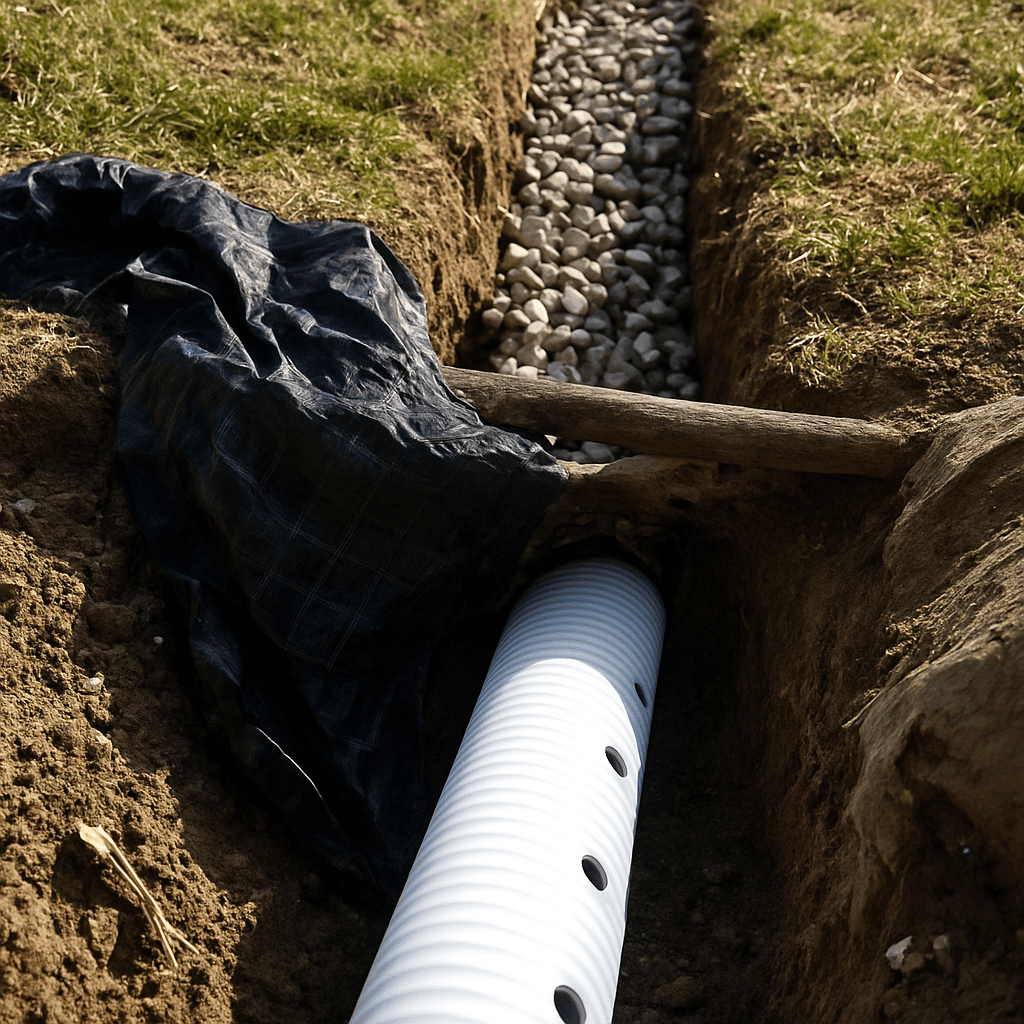

The advanced system uses Perforated HDPE/UPVC Pipes wrapped in geo-textile fabric, installed along the basement periphery. These pipes work in combination with a Power Drain Belt that channels water efficiently toward the drainage line.
System Components
Perforated Pipe (100mm / 160mm): Collects sub-soil water
Geo-textile Wrap: Prevents silting and clogging
Power Drain Belt: Allows vertical water movement through capillary & siphon action
Slope to Chamber/Sump: Ensures smooth collection and discharge

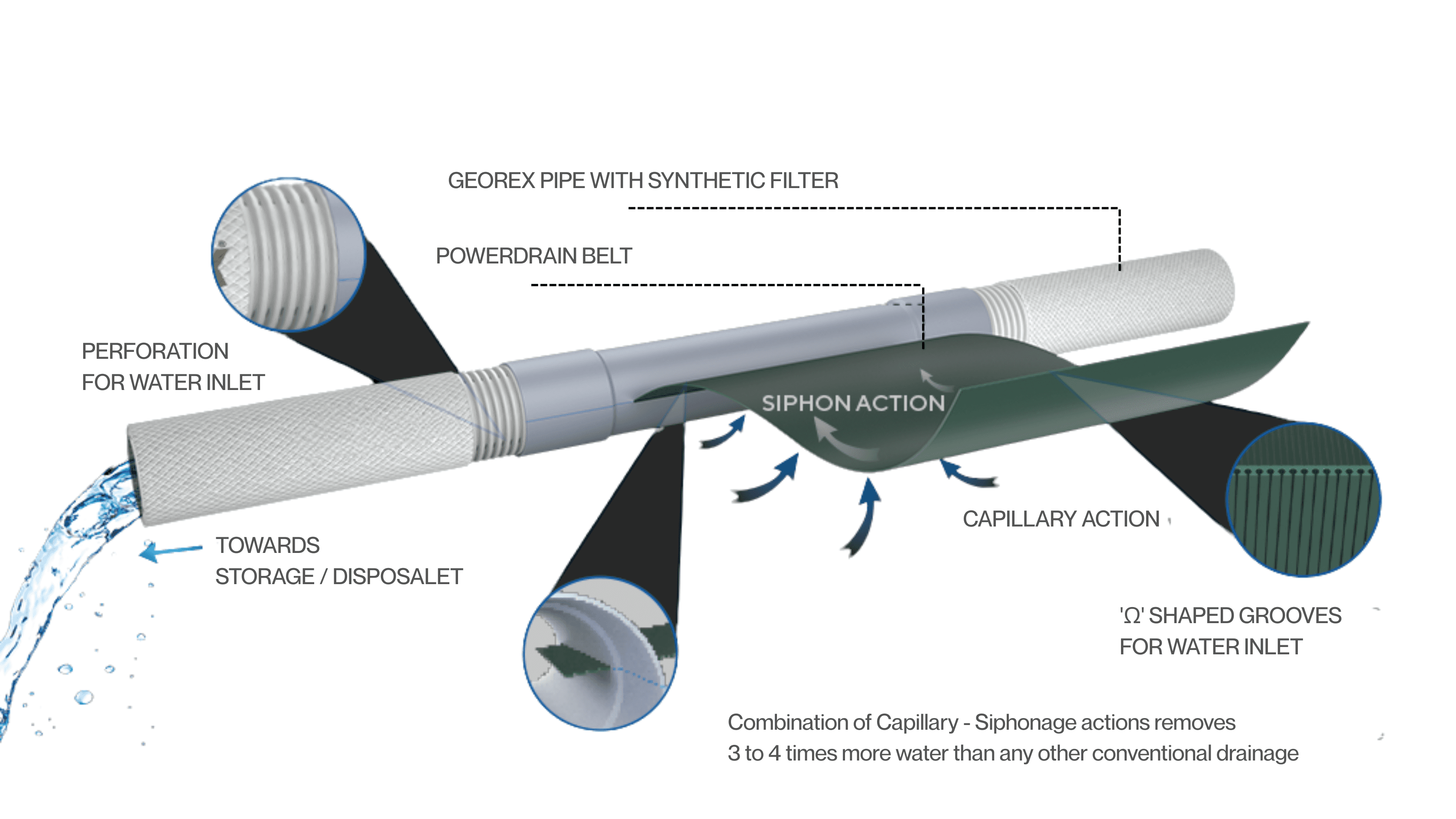

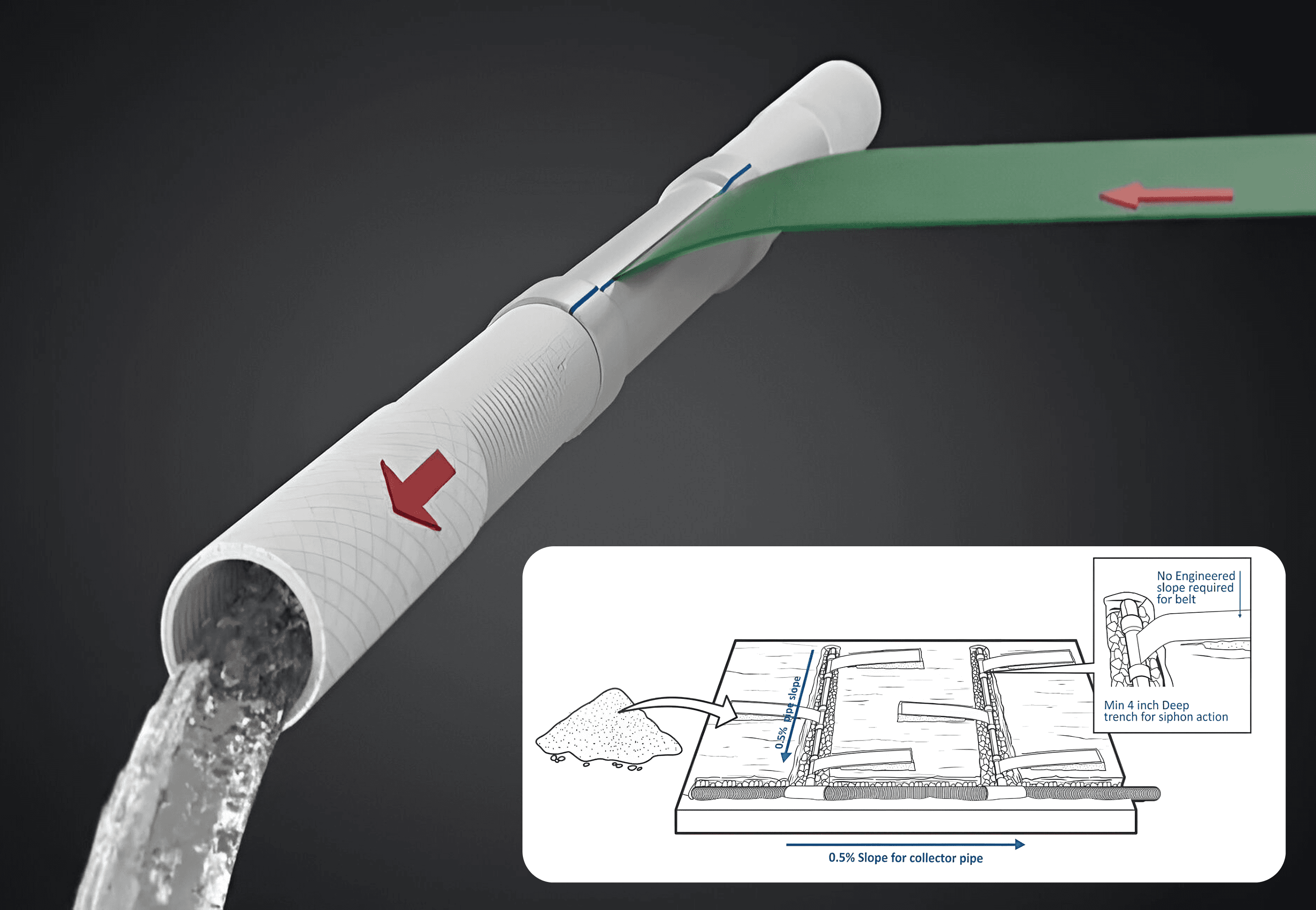

Working Principle
Water present in the surrounding soil moves:
Vertically downward through the Power Drain Belt via capillary and siphon action
Horizontally into the perforated pipe, which is laid at a designed slope
Finally to a collection chamber/sump, from where it is discharged or reused
This ensures uninterrupted drainage and a completely dry basement.
New Method vs Conventional Method
Feature | New Method | Conventional Boulder Method |
|---|---|---|
Space Saving | Compact design, requires less trench width | Needs wide trench |
Drainage Efficiency | Continuous flow, minimal clogging | High clogging due to silt |
Maintenance | Easy to inspect & flush | Very difficult to trace choke points |
Durability | Engineered materials ensure long life | Life depends on local boulder quality |
Cost-Effectiveness | Lower long-term repair & rework | High rectification expenses |
Areas of Application
Residential & commercial basements
Podiums & underground parking structures
Lift pits and machine rooms
Water tanks and STP/UGT peripheries
Landscaped zones & retaining walls
Industrial structures below ground level
Conclusion
The modern Sub Soil Drainage System-using perforated pipes, geo-textile wrapping, and power drain belts-offers a technically superior, space-efficient, and long-lasting solution compared to conventional boulder drains.
It ensures dry, safe, and durable basements, significantly improving building lifespan and structural health.
